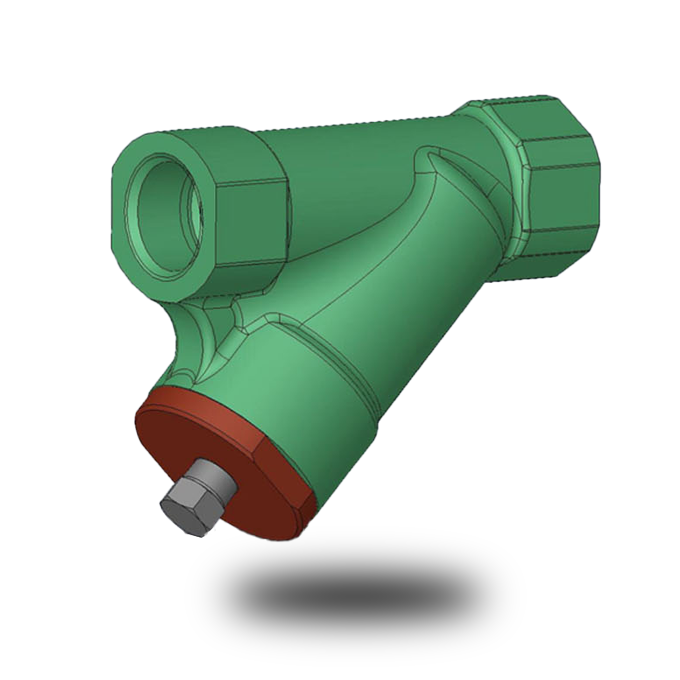

Forged Y STRAINERS, screwed cover
In steel, carbon steel, stainless steel and special materials
| CONSTRUCTION | Screwed Cover |
| DESIGN STANDARD | ASME B16.34 |
| PRESSURE CLASS | 800#-2500# |
| DIMENSIONS | from NPS 1/4″ to 1″ |
| CONNECTIONS | Threaded: BSP – NPT ASME B1.20.1 Socket Weld (SW) ASME B16.11 Butt Weld (BW) ASME B16.25 Flanged: socket welded on flanges RF – RJ |
| MATERIALS |
Carbon Steel Carbon Steel for Low Temperatures Stainless Steel Duplex and Super Duplex Alloy Steels Other Special Materials upon Request |
| FILTRATION | Standard: micro-expanded plate 0.8mm Upon Request: from 6mm to 10µm (nominal) |
| SPECIAL EXECUTIONS UPON REQUEST | |
General information on the product range. Please contact us for specific information.
U.S.V. for your supply of Impurity Collection Strainers
Filter elements, with different perforations (or wire meshes) and materials, can be custom-built upon request. Thanks to a dedicated department for filter element production, we offer a wide range of filtration grades: down to 10µm nominal and in various materials such as 316, 321, Alloy 625, Alloy 400, Alloy C, and more.
Standard strainers are supplied with a drain plug.
An overthickness for corrosion allowance is provided.
The screen standard , with 0.8 mm holes perforation, features a high ratio to ensure minimal pressure drop.
Each strainer is hydrotested by our quality department and is supplied with an EN 10204 3.1 certificate.
